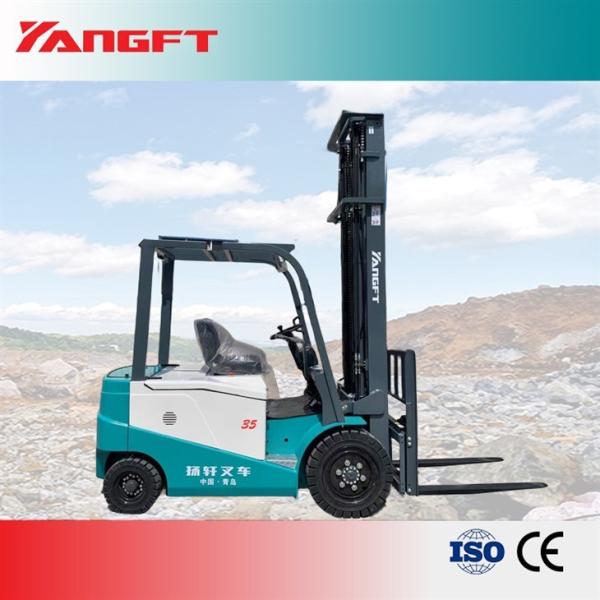

CPD35 3.5 Ton Electric Forklift 3500KG Electric Lift For Truck

Ask Lasest Price
Brand Name :	yangft
Price :	negotiable
Delivery Time :	10 DAYS
Payment Terms :	Western Union, MoneyGram, T/T

Add to Cart

Product Details
Company Profile

CPD35 3.5 Ton Electric Forklift 3500KG Electric Lift For Truck

Built with simplistic design in mind, Yangft electric forklifts are quiet, compact with small turning radius, and offers great handling. With customized algorithms, the 7L electric forklifts offers impressive performance, especially on slopes. The forklifts are easy to maintain and have proven dependable and reliable.

Safety

Unibody frame

Boltless, unibody design increases strength by up to 20%, improves safety, and allows the forklift to handle uneven surfaces and curvy paths, and can withstand long, rigorous transporting operations.

Mast made with German steel* offers unparalleled rigidity and durability.

Anti-slip function automatically activates on slopes ensures safety.

Electronic Lock Valve (Optional)

Adds more security by locking the lifting and tilting system when the operator is away from the seat.

Comfort

Comfortable Operating Space

Ergonomic design minimizes operator fatigue from long working hours, increases operating space and improves work efficiency.

Adjustable Steering Wheel

Provide convenience and can customize to the operator's desired position.

Intelligent multi-function display

Multifunction display shows driving speed, battery charge, total hours, operator information and all warnings in one compact, easy to read instrument.

Qingdao YangFT Electric Forklift A Series Parameter List (2 Ton to 4 Ton)
Model					CPD35
CHARACTERISTICS	POWER				BATTERY
	CAPACITY			kg	3500
	LOAD CENTER			mm	500
	LIFTING HEIGHT		h	mm	3000
	MAST TILT ANGLE	F/R		Deg	6/12
	OVERHEAD GUARD HEIGHT		Wa	mm	2320
PERFORMANCE	MAX.TRAVELING SPEED	LOAD/ NO LOAD		km/h	13/14
	MAX.LIFTING SPEED	LOAD/ NO LOAD		mm/s	280/360
	MAX. GRADEABILITY			%	15
DIMENSIONS	TOTAL LENGTH	WITH FORK	L1+L2	mm	3590
	TOTAL LENGTH	WITHOUT FORK	L2	mm	2520
	TOTAL WIDTH		b	mm	1225
	MAX. HEIGHT		h4	mm	4210
	MAST HEIGHT		h	mm	2115
CHASSIS	TYRE	FRONT			28x9-15
	TYRE	REAR			18x7-8-14PR
	WHEELBASE			mm	1700
	SERVICE WEIGHT	NO LOAD		Kg	5400
POWER	BATTERY(LEAD-ACID)	VOLTAGE		V	80
	BATTERY(LEAD-ACID)	CAPACITY		Ah	500
	MOTOR	DRIVE MOTORS		KW	13
	MOTOR	OIL PUMP MOTOR		KW	14
	OPTIONAL LITHIUM BATTERY	LITHIUM BATTERY		V/AH	76.8/280
