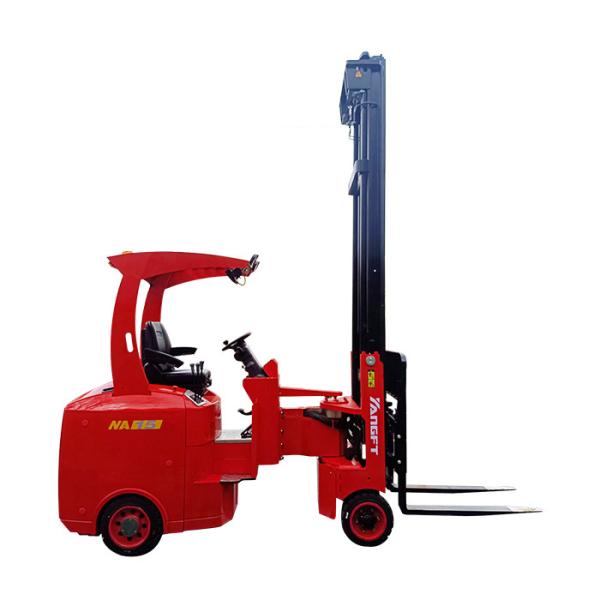

1.5-3 Tonne NA Series Electric Narrow Aisle Forklift

Ask Lasest Price
Brand Name :	yangft
Price :	negotiable
Delivery Time :	10 DAYS
Payment Terms :	Western Union, MoneyGram, T/T

Add to Cart

Product Details
Company Profile

1.5-3 Tonne NA Series Electric Narrow Aisle Forklift

Narrow Aisle Forklift 1.5-3 Tonne
1500-3000 kg
3000 mm

8-12 km/h

Features

This electric forklift can work in extremely narrow channels with a minimum working width of 1700mm (depending on the forklift model and pallet size).
The rated load ranges from 1500kg to 3000kg.
The lifting height of this narrow aisle forklift can reach 12 meters.
With the design of open view mast and double front cylinders, this material handling equipment provides optimal visibility.
Standard front-end camera makes operation more accurate and efficient.
A new generation controller from Italy ZAPI is equipped as standard configuration, the use of the latest vector control algorithm leads to increased energy efficiency.
The large LED instrument panel features functions of power display, timing and fault diagnosis. Human-computer interaction interface enables operation more simple and efficient.

Technical Specifications

Item			P	units	NA15	NA20	NA25	NA30
Characteristics	Capacity	Rated capacity	Q	kg	1500	2000	2500	3000
	Load Center	Standard load center distance	C	mm	500	500	500	500
	System	System			AC	AC	AC	AC
	Power	Battery			Lithium battery	Lead-acid/lithium battery	Lead-acid/lithium battery	Lead-acid/lithium battery
Dimensions	3 Stage Free Lift Mast	Mast lifting height	h3	mm	4500-8200	4500-10000	4500-12400	4500-12400
		Lifting height of rated weight		mm	3000	3000	3000	3000
		Mast tilt angle (forward/rear)	α/β	°	1/3	1/3	1/3	1/3
	Forklift Size	Total length (without fork)	L2	mm	2715	2780	2800	2800
		Total width	b1/b2	mm	1000	1200	1400	1600
		Overhead guard height	h6	mm	2400	2400	2400	2400
	Fork	TWL		mm	40122960	40122960	40122960	45122960
		Fork carriage width	b3	mm	880	1060	1060	1060
		Fork outside width (min.)	b4	mm	244	244	244	244
		Fork outside width (max.)	b5	mm	840	1020	1020	1020
	Min. Stacking Aisle Width	Pallet lateral width 8001200/10001200		mm	1600/1800	1800/2000	2000/2200	2200/2400
	Turning Angle	Turning angle	δ	°	210	210	210	210
	Tyre Size	Front		mm	412*127	412*178	412*178	412*178
	Tyre Size	Rear		mm	457*150	457*150	457*170	457*170
	Wheelbase	Wheelbase	Y	mm	1812	1895	1895	1895
Performance	Travel Speed	Load/no load		km/h	10/12	10/12	10/12	8/11
	Lifting Speed	Load/no load		mm/s	350/430	350/430	330/400	330/400
	Lowering Speed	Load/no load		mm/s	400/340	400/340	400/340	400/340
	Gradeability	Load/no load		%	8/10	10/10	10/10	8/10
	Brake	Mechanical/hydraulic			Hydraulic	Hydraulic	Hydraulic	Hydraulic
	Manual Brake	Mechanical/hydraulic			Mechanical	Mechanical	Mechanical	Mechanical
	Service Weight	With battery		kg	6500	6900	7200	7800
Power	Lead Acid Battery	Electric tension/capacity		V/Ah	48/420	80/330	80/400	80/500
	Lithium Battery	Electric tension/capacity (optional)		V/Ah	48/400	76.8/300	76.8/400	76.8/400
	Motor	Drive motor		kW	10	11	11	11
	Motor	Lifting motor		kW	10	14	14	14
